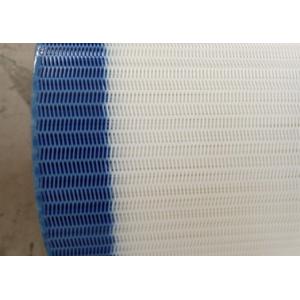

Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt

    Buy cheap Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt from wholesalers

    Buy cheap Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt from wholesalers
    • Buy cheap Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt from wholesalers
    • Buy cheap Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt from wholesalers
    • Buy cheap Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt from wholesalers

    Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt

    Ask Lasest Price
    Brand Name : REKING
    Model Number : Polyester Plain Weave Mesh Belt
    Certification : ISO9001
    Price : Determine the price based on the quantity
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 meter per week
    Delivery Time : 10 Days After Receiving Your Payment
    • Product Details
    • Company Profile

    Professional Plain Weave Linear 3x3mm Hole Polyester Mesh Belt

    Professional Plain Weave Linear 3x3mm Hole Polyester Mesh BeltTop spo

    2021 New Professinal Polyester Plain Weave Linear Mesh Belt Polyester Mesh Belt


    Polyester Mesh Belt Features


    1)High strength,standard plain weave ,uniform opening

    2) Stand high working strength,durable,long work time

    3) Resistance under 180 degrees

    4) Waterproof

    5) Shrink-Resistance


    It have the characteristics of tear-resistance, shrink-resistance and abrasion resistance etc.

    Polyester Monofilament process conveyor belting is available in a wide variety of yarn thicknesses and apertures. Polyester mesh belting is characterised by high reliability, easy handling, thermal and chemical resistance coupled with dimensional stability.


    Polyester Mesh Belt Specificaitons


    Material100% mono polyester wire
    Weaveplain weave
    mesh1-60 mesh
    width0.1-6.8m
    length1-100m/roll
    Edge treatmentblue glue ,or endless joint.

    Polyester Mesh Belt Usage


    The 2-shed and 3-shed polyester plain fabrics are mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making, etc.
    Polyester plain fabrics also could be used in mining isdustry for sieing or conveyor belt, high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.


    No.wire diameter mmdensity(wire/cm)strength
    N/cm
    warpweftwarpweftsurface
    169030.70.9165.33≥2200
    229030.50.9225.33≥2000
    268080.50.8278.5≥2100
    159050.90.9174.8≥4500
    1511050.91,1164.8≥5000
    1211040.91.1123.8≥3600
