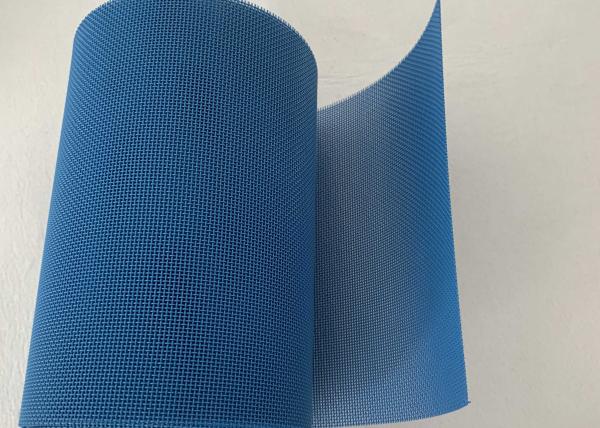

Seamless Polyester Plain Weave Mesh Belt For Board Dryer
Polyester Plain Weave Mesh Belt Description
Polyester plain weave mesh belt mainly has two comprehensive, three
comprehensive flat woven net series products are mainly used in
mineral screening industry, paper pulp board net, kraft pulp
packaging paper, veneer board net, fiberboard factory net and other
special industries.
Mainly used in paper mills fourdrinier production paddle paperboard
with fiberboard plant use,food drying,screening of
materials,environmental protection and other industrial use:
1.Pulp making,Sulplate pulp packing,cardboard pulp and fiberboard
plants
2.Environment protection,sewage treatment plants.
3.Medicine,printing,drying industry as conveyor belt.
Polyester Plain Weave Mesh Belt Features
1)High strength,standard plain weave ,uniform opening
2) Stand high working strength,durable,long work time
3) Resistance under 180 degrees
4) Waterproof
5) Shrink-Resistance
Polyester Square Hole Mesh Belt Techinical Data
Polyester Mesh Conveyor Belt |
Weaving Type | Model | Thread Diameter (mm) | Density(No.s/cm) | Srength (N/cm) | Air Permeability (m³/m²h) |
Warp | Weft | Warp | Weft |
2-shed plain weaving fabric | 05802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | >20000 |
05102 | 1.0 | 1.0 | 4.7-5.2 | 4.3-5 | 1600 | >15000 |
06702 | 0.7 | 0.7 | 8 | 7 | >=1600 | 11000 |
07102 | 0.7 | 1.0 | 6.6-7 | 4.3-4.6 | 1100 | >15000 |
08552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 |
09452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 |
09502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | >10000 |
12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 |
3-shed plain weaving fabric | 08603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
08903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 |
07803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 |
20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 |
20403 | 0.3 | 0.4 | 22 | 14.5 | 1200 | 13500 |
Polyester Square Hole Mesh Belt Usage
The 2-shed and 3-shed polyester plain fabrics are mainly used in
special lines of paper making industry, such as paper pulps making,
packing and liner cardboard making, etc.
Polyester plain fabrics also could be used in mining isdustry for
sieing or conveyor belt, high density board making, food drying,
sludge dehydration equipments, concentrate and other filtration
industries.
