Product sieving system use flat wire conveyor belt with high carbon
steel

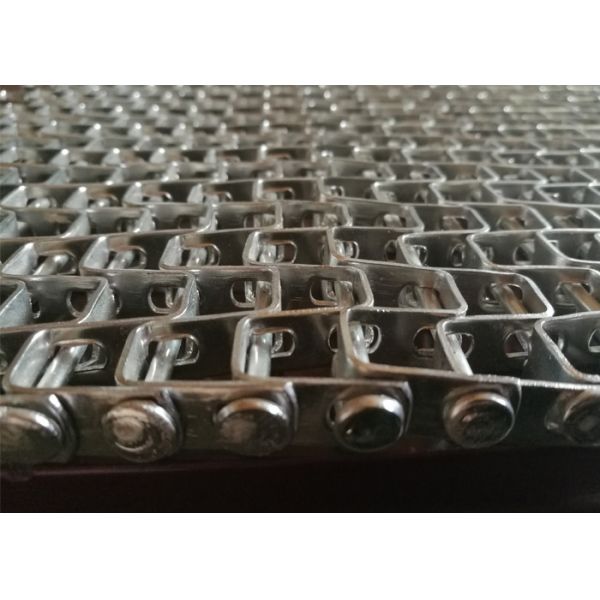

Desription of flat wire mesh conveyor belt
Flat wire conveyor belt has many kinds of material , such as
stainless steel wire , stainless iron wire , low carbon steel wire
, galvanized iron wire . It has the fetures of large open area
allows easy air flow on the tunnel freezer belt , long lifetime of
the conveyor belt . It also can be used in many different areas :
Product handling systems , Sorting systems , Washing systems ,
Bread production systems , Drying systems , Cooling systems , Food
processing .
The description of flat wire conveyor belts is followed by its load
capacity . Normally , there are standard duty belts and heavy duty
belts for our customer to choose from according to their different
needs . The standard duty type is sufficient for most applications
and heavy duty type is ideal for heavy product conveying and some
tougher conditions .
As your request, radius flat wire conveyor belts can also be
supplied with right and left turn up to 180 degrees and reinforcing
links to strengthen the outside edges of the belt . Its turning
ability makes the belt capable to operate in limited space without
obstacles and troublesome transfers .
| Item | Size(mm) | Sheet thickness(mm) | sheet width(mm) | Material |
| Flat wire conveyor belt | 25.4*12.7 | 1.2 | 9.5 | carbon steel |
| 25.4*25.4 | 1.2 | 9.5 | stainless steel |
| 27.2*18 | 1.5 | 12 | galvanized steel |
| 27.2*27.2 | 1.5 | 12 | |
| 38.1*38.1 | 1.5-2.0 | 12 | |
| 38.1*19 | 1.5-2.0 | 12 | |
| 50.8*25.4 | 2.0-2.5 | 15 | |
| 50.8*50.8 | 2.0-2.5 | 15 | |
Features of flat wire mesh conveyor belt
Easy flow of air , liquids or gases , Flat surface , easy to clean
, easy to replace the damaged parts which are damaged , made from
cross rods and flat metal strip , Can be used at conveyor speeds of
less than 1 meter per minute to about 25 meters per minute , Large
open area
Usage of flat wire mesh conveyor belt
As a conveyor belt in freezing and cooling tunnels , as a conveyor
belt in confectionery and chocolate industry , as a cooling belt in
bakeries , a conveyor belt in the chemical industry , as a
supporting belt in special driers , as a conveyor plotting belt in
special discharging towers at ports and airports , pasteurizing
belt , cooking belt , spiral freezer belt , pizza conveyor belt
etc.
